Durable Powder & Granules Conveying Manually Controlled Diverter Valve
Production Description
Double-way valve, also known as diverter valve (reversing valve), is a device for switching material direction in pneumatic conveying system. It can make the material in the pipeline in the flow state to change the direction of transportation without interrupting the material supply and stop the gas supply, the material to two selected positions. If several valve combinations can deliver the material to a number of selected locations, so the operation is very convenient.
| Product Name | Plug Diverter Valve |
| Material | Carbon steel, stainless steel304, 316 |
| Cylinder | AirTAC, Festo |
| Drive | Pneumatic |
Main Features:
1. Plug Diverter valves are heavy-duty alternatives to the flap type conveying diverter valve.
2. They have an internal plug that rotates 150 degrees to reroute product from one leg to the other. The round hole in the plug matches the round blow through ports, making for a very smooth transition.
3. The units work well on applications with large particles that may get caught in a flap type diverter, causing leakage to the dead leg.
4. As there is no rubber seal, the plug diverter is well suited to more abrasive products.
5. A pneumatic rotary actuator is used to rotate the plug as standard, but can also be supplied with an electric actuator or hand crank.
6. The units come standard with spigots as specified by the customer: flangd, OD tube or nominal pipe.
7. Sizes available are: 2, 3, 4, 5, 6, 8 and 10 inch.

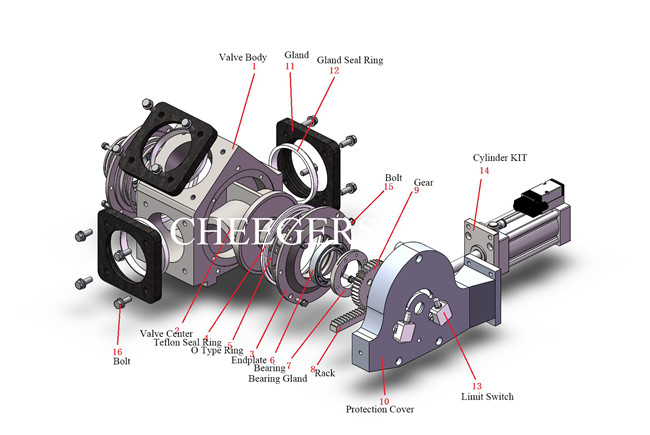

Explosion Drawing
Dimension Display of Diverter Valve
| Type | Pneumatic two way valve size | |
| | A | B | C | C1 | D | D1 | Dg | d0 | L | L1 | L2 | L3 | M | Φ |
| THFX6.5X2 | 100 | 80 | 85 | 155 | 80 | 158 | 65/68 | 73/76 | 95 | 20 | 330 | 575 | M8 | 8 |
| THFX8X2 | 115 | 100 | 98 | 165 | 90 | 176 | 80/86 | 89/95 | 105 | 20 | 320 | 575 | M10 | 8 |
| THFX10X2 | 140 | 120 | 105 | 175 | 95 | 198 | 100/106 | 108/114 | 120 | 20 | 315 | 590 | M10 | 10 |
| THFX12X2 | 170 | 140 | 125 | 195 | 110 | 230 | 120/125 | 130/133 | 140 | 20 | 345 | 695 | M12 | 10 |
| THFX15X2 | 210 | 160 | 140 | 215 | 125 | 265 | 150/158 | 159/168 | 160 | 22 | 355 | 715 | M12 | 10 |
| THFX18X2 | 240 | 180 | 155 | 230 | 135 | 295 | 170/180 | 180/190 | 175 | 22 | 365 | 715 | M12 | 10 |
| THFX20X2 | 280 | 220 | 175 | 260 | 155 | 335 | 203 | 219 | 200 | 25 | 425 | 875 | M12 | 10 |

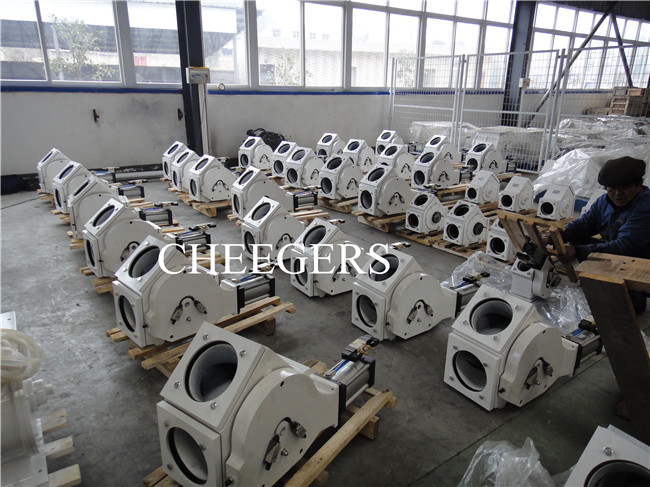

Factory Overview
For every production step our workers are carefully finished. QC department is strictly following the quality standard by 100% inspection for all the products. Cheegers never stop studying,researching and developing new designs on rotary valves. Each year, we will launch new designs which suit different application conditions.
Plug Diverter Valve Model Interpretation
| Chegers Machinery DV Series Diverter Valve Model Interpretation |
Model Format:Product Model.Classification Model-Size of Shunt Pipe (Values are measured in millimeters)
Like DV-P.P-65×2 |
| Product Model | English Interpretation |
| DV-P | Diverter Valve-Pneumatic |
| DV-G | Diverter Valve-Gravity |
| Classification Model | |
| W | Plug |
| T | Ball |
| P | Clapboard |
| | Knife |
| Note: Flange standard, material requirements, accessories, transmission form, power configuration and so on are explained in the product remarks. |
Packaging & Delivery
Apart from the standard rotary valves we have in stock, our rotary valves generally need 40-45 days to finish.
We will use plywood case to pack, which can avoid the fumigation.
Certificate
Cheegers has got the CE for rotary valve and diverter valve as below:
We also have other patents for rotary valve and diverter valve domestically.
Like high airtight rotary airlock valve patent, apprearance patent for airlock valves, etc
