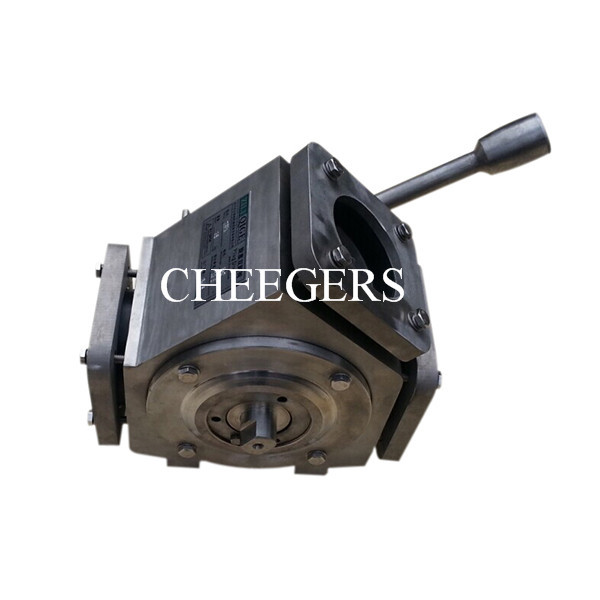

China Factory Direct Sell Cost Effective Manual Type Two Way Diverter Valve
Product Description
1. Plug Diverters are heavy-duty alternatives to the flap type conveying diverter.
2. They have an internal plug that rotates 150 degrees to reroute product from one leg to the other. The round hole in the plug matches the round blow through ports, making for a very smooth transition.
3. The units work well on applications with large particles that may get caught in a flap type diverter, causing leakage to the dead leg.
4. As there is no rubber seal, the plug diverter is well suited to more abrasive products.
5. A pneumatic rotary actuator is used to rotate the plug as standard, but can also be supplied with an electric actuator or hand crank.
6. The units come standard with spigots as specified by the customer: flangd, OD tube or nominal pipe.
7. Sizes available are: 2, 3, 4, 5, 6, 8 and 10 inch.
8. Work pressure (MPa) medium temperature (℃) for 0.05 200 or less pulverized coal, raw materials,.
9. Such as cement works: powder and granular materials delivery valve is mainly composed of left and right body, rotary valve tray, adjusting
device, sealing surface and locating the CAM and other parts.
| Product Name | Plug Diverter Valve |
| Material | Carbon steel, stainless steel304, 316 |
| Cylinder | AirTAC, Festo |
| Drive | Pneumatic |
Explosion Drawing
Dimension Display
| Type | Pneumatic two way valve size | |
| | A | B | C | C1 | D | D1 | Dg | d0 | L | L1 | L2 | L3 | M | Φ |
| THFX6.5X2 | 100 | 80 | 85 | 155 | 80 | 158 | 65/68 | 73/76 | 95 | 20 | 330 | 575 | M8 | 8 |
| THFX8X2 | 115 | 100 | 98 | 165 | 90 | 176 | 80/86 | 89/95 | 105 | 20 | 320 | 575 | M10 | 8 |
| THFX10X2 | 140 | 120 | 105 | 175 | 95 | 198 | 100/106 | 108/114 | 120 | 20 | 315 | 590 | M10 | 10 |
| THFX12X2 | 170 | 140 | 125 | 195 | 110 | 230 | 120/125 | 130/133 | 140 | 20 | 345 | 695 | M12 | 10 |
| THFX15X2 | 210 | 160 | 140 | 215 | 125 | 265 | 150/158 | 159/168 | 160 | 22 | 355 | 715 | M12 | 10 |
| THFX18X2 | 240 | 180 | 155 | 230 | 135 | 295 | 170/180 | 180/190 | 175 | 22 | 365 | 715 | M12 | 10 |
| THFX20X2 | 280 | 220 | 175 | 260 | 155 | 335 | 203 | 219 | 200 | 25 | 425 | 875 | M12 | 10 |

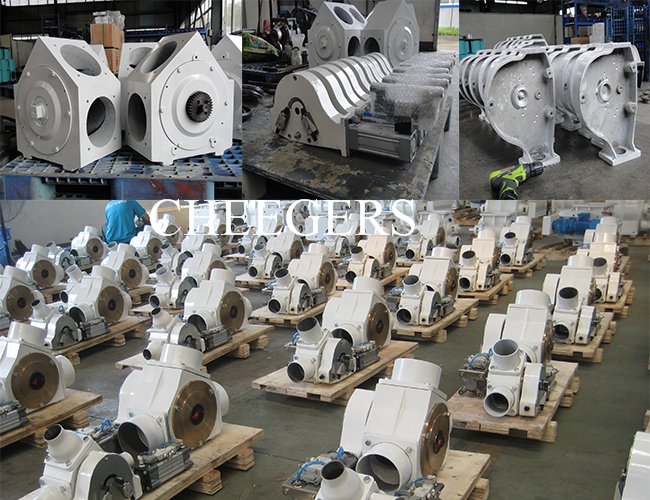

Factory Overview
For every production step our workers are carefully finished. QC department is strictly following the quality standard by 100% inspection for all the products. Cheegers never stop studying,researching and developing new designs on rotary valves. Each year, we will launch new designs which suit different application conditions.
Handling Material
With small size, elegant appearance, compact structure, convenient operation etc, it is widely used in grain, food, feed, grease, chemicals, electric power, port and wharf, storage and transportation industries etc.
For different sizes, shapes handling material with different charateristics, we have professional plans and solutions to deal with them in pneumatic conveying system.
Certificate
Cheegers has got the CE for rotary valve and diverter valve as below:
We also have other patents for rotary valve and diverter valve domestically.
Like high airtight rotary airlock valve patent, apprearance patent for airlock valves, etc
